ITSYN Servers

According to your requirements to receive itsyn’s hardware and servers’ specification and financial proposal please find following the servers specs.

1. ITSYN 6016T-MT 1U

ITSYN Servers

KEY FEATURES

•Dual Intel® 5500 series Xeon® Quad/Dual-Core,with QPI up to 6.4 GT/s.

•Up to 24GB DDR3 1333/ 1066/ 800MHz ECC Registered /Unbuffered DIMM.

•1 (x8) PCI-E 2.0 Slot.

•Dual Intel® 82574L Gigabit Ethernet Controller.

•4 x 3.5” Hot-swap SATA Drive Trays.

•520W High-efficiency Power Supply.

Storage

•Chassis with 16 bays hot swap SATAII.

•Power Supply Ridondato 2 x 460W.

•Default double channel connection for applications.

•Tolerance SAS.

•SAS cables for connecting the two server unit.

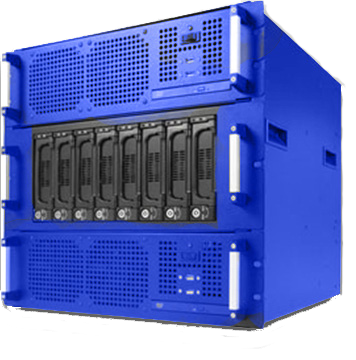

2.ITSYN SuperCluster

A-DUAL Opteron Quad Core

•Memory RAM expandable up to 64Gb.

•Storage up to 8 discs SATA / SAS.

•Controller RAID SATA / SAS.

•Remote management IPMI 2.0.

B-QUAD Opteron Quad Core

•Memory RAM expandable up to256Gb.

•Storage up to 8 discs SATA / SAS.

•Controller RAID SATA/SAS.

•Remote management IPMI 2.0.

SPECIFICATIONS

Powerful performance-measuring tools

Tray Processor Module (2 in total)

Supply Fixed power for a single processor module

power supply: 510W – PFC ~ 220V/50Hz

Power available for user expansion cards: 158W (+3.3 V 22A, +5 V 23A, +12 V 10A, +5 VSB 1.3A)

Forced cooling with cooling air flow front to rear tray. Two fans + one power supply fan

Operating temperature: Min 5 ° C – Max 35 ° C

Drive Bay 8 Bay intelligent – Hot-Swap technology

Disks SATA-SAS Size 3.5 “

Currently Maximum Capacity :16 Tera Byte SATA, SAS 8 Tera Byte

Supply 2 redundant power supplies Hot-Swap (dual power line supported)

Power supply: 450W +450 W – PFC ~ 220V/50Hz

Forced cooling with cooling air flow front to the rear section. Two + four fan power supply fan

Environment temperature: Min 10 ° C – Max 35 ° C

Chassis

Type Rack Mount Box 19 “

Dimensions

10U – Rack Mount shallow ‘

Width 440mm

Height 440mm

Depth ‘500mm

Weight 25 kg including 2 drawers processor and 8 disks

Reliability ‘99.99992 (calculated fail over time equal to 1 minute)

3.ITSYN SINGLE MINI BLUE

MONO AMD Dual/Triple/Quad Core

•Memory RAM expandable up to 8Gb.

•Storage 2 disc SATAII.

•Configuration in RAID1.

•Controller RAID SATA.

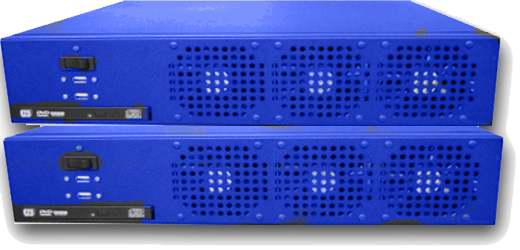

4.ITSYN TWIN CLUSTER

ITSYN TWIN CLUSTER

MONO AMD Dual/Triple/Quad Core

•Memory RAM expandable up to 8Gb.

•Storage 2 disc SATAII.

•Configuration in RAID1.

•Controller RAID SATA.

SPECIFICATIONS

ITSYN Single Mini Blue / ITSYN TwinCluster

Type Rack Mount Box 19 “

2U – Rack Mount shallow ‘

Width 440mm – Height 90mm – Depth ‘400mm – Weight 8 Kg unit

Power electronics room (4 units total) 300W power supply – PFC ~ 220V/50Hz

Power disc double 300W power supply – PFC ~ 220V/50Hz

Drive Bay 1 bay drive unit SATA Size 3.5 “

Current ‘Maximum Capacity 2 Tera Byte SATA drives.
